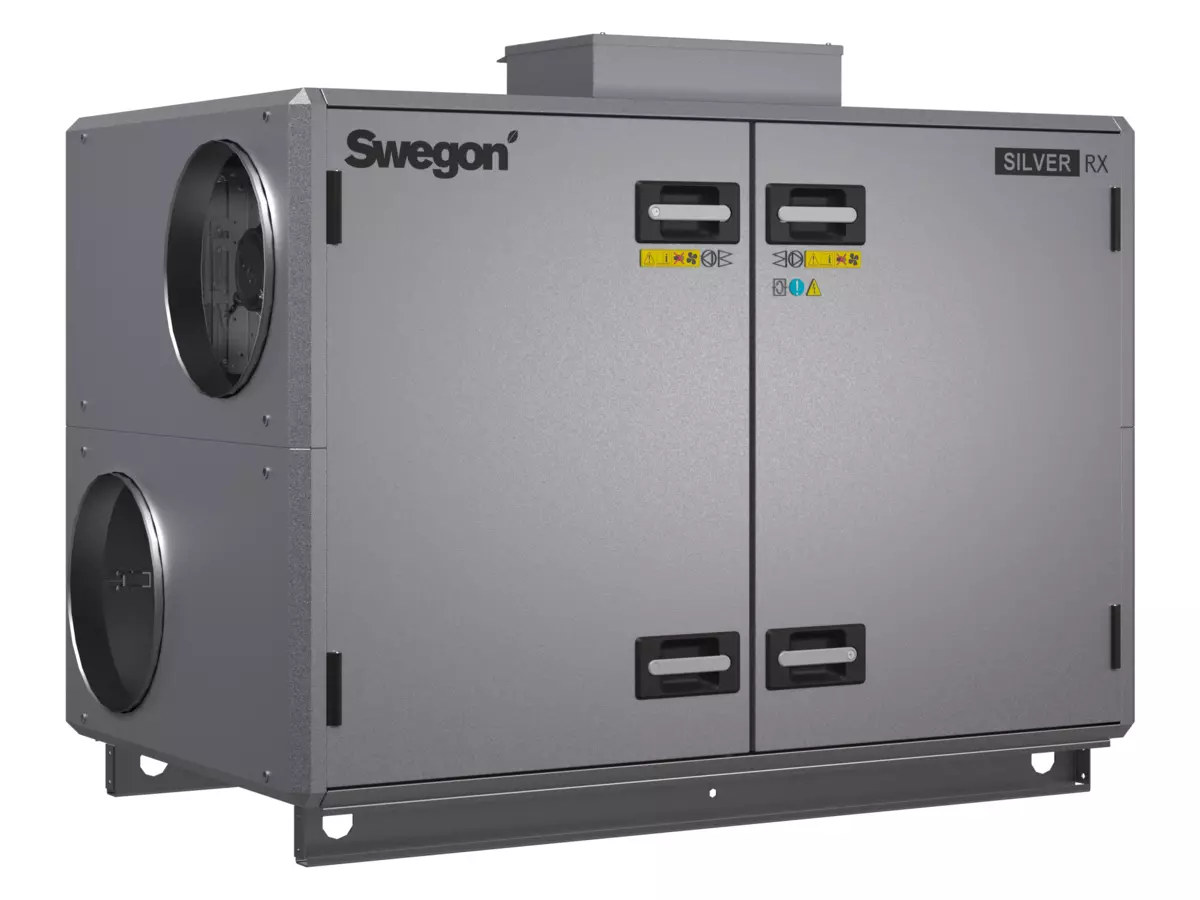

SILVER C RX
Air handling unit with rotary heat exchanger and top, side or L connections, without controls.
- Max. air flow 39.180 m³/h (Ecodesign)
- Rotary heat exchanger
- Cooling/heating available as an accessory (not integrated)
- Placement indoors/outdoors
- Top, side or L connections
- Without controls
- Certified by Eurovent
- Recycled and renewably produced steel with Magnelis® coating (C5) lowers carbon footprint
Thanks to a patented design with a turbulent flow in the air passages, RECOnomic attains a uniquely high degree of energy efficiency.
Swegon’s rotary heat exchanger is also available in epoxy treated and sorption treated versions (RECOsorptic). The sorption version increases the energy efficiency further by dehumidifying or recovering moisture depending on the conditions and needs.
With a focus on sustainability, we are committed to reducing the embodied carbon of our units. By introducing XCarb® recycled and renewably produced steel with Magnelis® coating (C5) inside our units we have reduced the total GWP by around 10% and a GOLD unit now contains roughly 15% recycled material.
Dimensions | Air flow | |||||||
Width mm | Height mm | Length mm | Weigth kg | Min air flow m³/s (Ecodesign) | Max air flow m³/s (Ecodesign) | Min air flow m³/h (Ecodesign) | Max air flow m³/h (Ecodesign) | |
SILVER C RX 04 | 825 | 1020 | 1499/1799 | 234-335 | 0.08 | 0.5 | 290 | 1620 |
SILVER C RX 05 | 825 | 1020 | 1499/1799 | 234-335 | 0.08 | 0.5 | 290 | 1960 |
SILVER C RX 07 | 995 | 1185 | 1619/1860 | 281-412 | 0.08 | 0.8 | 290 | 2700 |
SILVER C RX 08 | 995 | 1185 | 1619/1860 | 295-420 | 0.2 | 0.9 | 720 | 3110 |
SILVER C RX 11 | 1199 | 1395 | 1859 | 427-527 | 0.2 | 1.1 | 720 | 3960 |
SILVER C RX 12 | 1199 | 1395 | 1859 | 450-554 | 0.2 | 1.2 | 720 | 4390 |
SILVER C RX 14 | 1400 | 1651 | 2080 | 572-746 | 0.2 | 1.7 | 720 | 5940 |
SILVER C RX 20 | 1400 | 1651 | 2080 | 572-746 | 0.3 | 1.8 | 1080 | 6560 |
SILVER C RX 25 | 1600 | 1911 | 2261 | 744-971 | 0.3 | 2.4 | 1080 | 8600 |
SILVER C RX 30 | 1600 | 1911 | 2261 | 744-971 | 0.5 | 2.5 | 1800 | 8890 |
SILVER C RX 35 | 1990 | 2259 | 2642 | 1096-1405 | 0.5 | 3.6 | 1800 | 12900 |
SILVER C RX 40 | 1990 | 2259 | 2642 | 1096-1405 | 0.8 | 3.9 | 2700 | 14000 |
SILVER C RX 50 | 2318 | 2388 | 2642 | 1298-1752 | 0.8 | 4.9 | 2700 | 17800 |
SILVER C RX 60 | 2318 | 2388 | 2642 | 1298-1752 | 1 | 5.1 | 3600 | 18500 |
SILVER C RX 70 | 2637 | 2740 | 3112 | 2218-2649 | 1 | 6.8 | 3600 | 24400 |
SILVER C RX 80 | 2637 | 2740 | 3112 | 2218-2649 | 1.5 | 6.9 | 5400 | 24800 |
SILVER C RX 100 | 3340 | 3440 | 3322 | 3324-3910 | 1.5 | 10.5 | 5400 | 37950 |
SILVER C RX 120 | 3340 | 3440 | 3322 | 3524-4128 | 2.5 | 10.9 | 9000 | 39180 |
SILVER C RX Top 04 | 825 | 1185 | 1600 | 295-302 | 0.08 | 0.5 | 290 | 1620 |
SILVER C RX Top 05 | 825 | 1185 | 1600 | 295-310 | 0.08 | 0.5 | 290 | 1840 |
SILVER C RX Top 07 | 995 | 1395 | 1720 | 351-376 | 0.08 | 0.7 | 290 | 2540 |
SILVER C RX Top 08 | 995 | 1395 | 1720 | 369-382 | 0.2 | 0.8 | 720 | 2770 |
SILVER C RX Top 11 | 1199 | 1395 | 2219 | 527-549 | 0.2 | 1.1 | 720 | 3950 |
SILVER C RX Top 12 | 1199 | 1395 | 2219 | 550-576 | 0.2 | 1.2 | 720 | 4270 |
SILVER C RX Top 14 | 1400 | 1651 | 2643 | 726-832 | 0.2 | 1.7 | 720 | 5940 |
SILVER C RX Top 20 | 1400 | 1651 | 2643 | 726-832 | 0.3 | 1.8 | 1080 | 6530 |
SILVER C RX Top 25 | 1600 | 1911 | 2643 | 884-1033 | 0.3 | 2.3 | 1080 | 8210 |
SILVER C RX Top 30 | 1600 | 1911 | 2643 | 884-1033 | 0.5 | 2.3 | 1800 | 8160 |
